Description

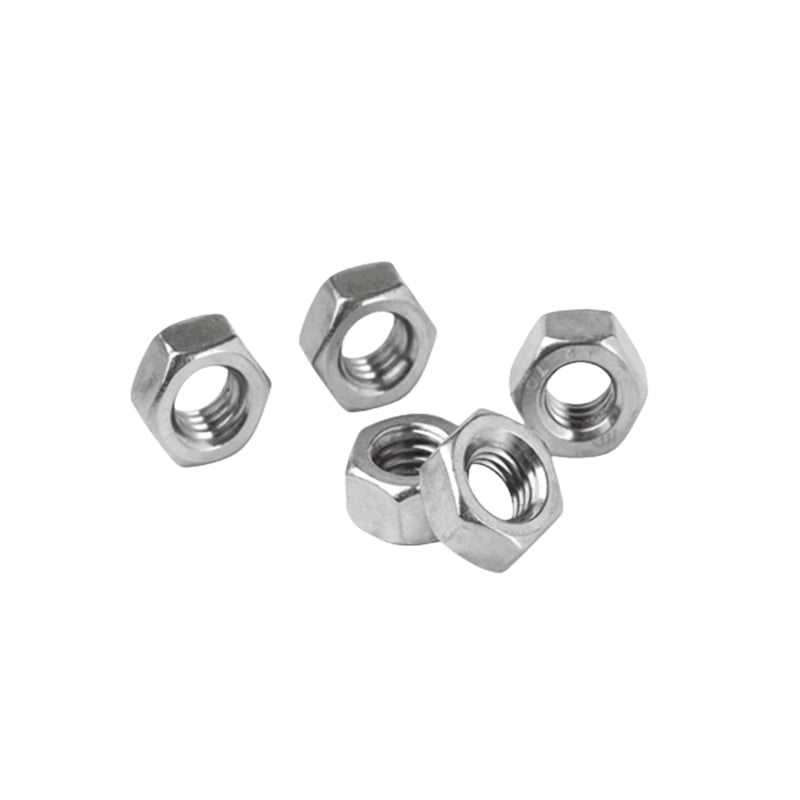

Hexagon nuts and screws, bolts, screws with each other's use, play a role in connecting fastening machine parts. The most widely used hexagonal nuts of type 1, class C nuts are used on machines, equipment or structures with rough surfaces and low requirements for precision; class A and B nuts are used on machines, equipment or structures with smooth surfaces and high requirements for precision. 2 hexagonal nuts of thickness M are thicker and are used on occasions where assembly and disassembly are often required. The thickness M of hexagonal thin nuts is thinner, mostly used in the occasion where the surface space of the connected machine parts is restricted.
Hexagon High Strength Nut Specifications��
|
Nominal straight line |
Pitch |
Opposite |
High |
|
m8 |
1.25 |
12.73-13 |
6.4-6.8 |
|
m10 |
1.5 |
15.73-16 |
8.05-8.4 |
|
m12 |
1.78 |
17.73-18 |
10.4-10.8 |
|
m14 |
2 |
20.67-21 |
12.2-12.8 |
|
m16 |
2 |
23.67-24 |
14.1-14.8 |
|
m18 |
2.5 |
26.16-27 |
15.2-15.8 |
|
m20 |
2.5 |
29.16-30 |
16.9-17.9 |
|
m22 |
2.5 |
33-34 |
18.3-18.4 |
|
m24 |
3 |
35-36 |
20.2-21.5 |
Hexagon Thickened Nut Specifications:
|
Nominal straight line |
Pitch |
Opposite |
High |
|
m12 |
1.75 |
18.72-19 |
14-14.35 |
|
m14 |
2 |
21.72-22 |
15.65-16.35 |
|
m16 |
2 |
23.72-24 |
17.58-18.42 |
|
m18 |
2.5 |
26.72-27 |
19.58-20.42 |
|
m20 |
2.5 |
29.72-30 |
21.58-22.42 |
|
m22 |
2.5 |
31.66-32 |
23.58-24.42 |
|
m24 |
3 |
35.66-36 |
25.58-26.42 |
|
m27 |
3 |
40.66-41 |
27.5-28.5 |
|
m30 |
3.5 |
35.66-36 |
31.5-32.5 |
