The Role of Surface Finishing in Tulip Contact Performance

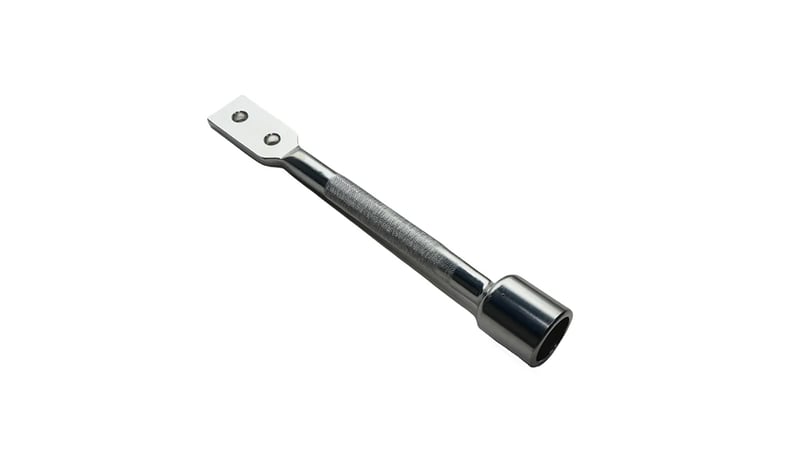

In the intricate world of electrical engineering, where reliability and efficiency are non-negotiable, every component plays a critical role. Among these, the humble tulip contact—a common type of electrical connector used in everything from circuit breakers to high-voltage switchgear—is a prime example of how surface-level characteristics dictate system-wide performance. While its mechanical design ensures a secure grip, it is the surface finishing that truly unlocks its potential, acting as the first line of defense against a host of operational challenges. This deep dive explores why surface finishing is not merely a cosmetic step but a fundamental engineering process that directly impacts the conductivity, durability, and overall reliability of tulip contacts.
1. The Primary Battle: Combating Corrosion and Oxidation
The most immediate threat to any electrical contact is environmental degradation. When exposed to oxygen, moisture, or corrosive atmospheres (like those containing sulfur), base metals such as copper—the preferred material for its excellent conductivity—readily form non-conductive oxide layers. This film, acts as an insulator, leading to a phenomenon known as "contact resistance."
As contact resistance increases, a vicious cycle begins:
-
Reduced Conductivity: The electrical flow is impeded, leading to energy losses and inefficiency.
-
Heat Generation: The resistance converts electrical energy into heat (Joule heating). This localized heating can accelerate oxidation further, worsening the resistance.
-
Thermal Runaway: In severe cases, the temperature can rise to a point where it damages the contact itself, surrounding insulation, and even poses a fire risk.
The Solution: A high-quality surface finish acts as a protective barrier. Precious metal platings like silver or tin are highly resistant to oxidation. Silver, in particular, offers superior conductivity and maintains a stable surface, ensuring a low and consistent contact resistance throughout the contact's lifespan, even in humid environments.
2. Enhancing Electrical Conductivity and Stable Contact
While copper is an excellent conductor, its surface is prone to the oxidation issues described above. The surface finish, therefore, is responsible for creating the actual contact interface.
-
Low and Stable Contact Resistance: A properly applied finish provides a clean, predictable surface for the electrical current to pass through. This is crucial for maintaining voltage stability and minimizing power loss across the connection.
-
Mitigating the "Fretting" Phenomenon: In applications with slight vibrations or thermal cycling, microscopic movements can occur between the tulip contact and its mating pin. This can wear through thin oxide layers on base metals, but the exposed fresh metal quickly re-oxidizes, leading to increasing resistance over time—a process called fretting corrosion. A durable, oxidation-resistant plating like silver or gold effectively prevents this, as the soft plating accommodates the micro-movement without exposing the base metal.
3. Improving Mechanical Properties and Durability
Surface finishing is not just about electricity; it also profoundly affects the mechanical performance of the tulip contact.
-
Reducing Insertion and Withdrawal Forces: A smooth, low-friction coating like tin or certain silver alloys can lubricate the contact surface. This makes it easier to insert and withdraw the mating pin, reducing wear and tear on both components and easing maintenance procedures.
-
Increasing Abrasion Resistance: During repeated mating cycles, the contact fingers of the tulip can experience wear. A hard, durable plating can significantly increase the contact's resistance to abrasion, extending its mechanical life. This is especially important for devices that require frequent operation.
4. Common Surface Finishing Options for Tulip Contacts
The choice of finish is a careful balance between performance requirements and cost.
-
Silver Plating: The gold standard for high-performance applications. It offers the lowest contact resistance, excellent corrosion resistance, and good solderability. It is often used in high-current and critical power distribution systems.
-
Tin Plating: A cost-effective and widely used alternative. Tin provides good corrosion resistance and is excellent for mitigating fretting corrosion due to its soft, self-lubricating properties. While its conductivity is lower than silver, it is perfectly suitable for many medium-duty applications.
-
Selective Plating: To optimize costs, a common practice is to apply a thick plating of a less expensive material (like tin) to the entire contact for corrosion protection, and then add a spot of silver precisely on the critical contact points. This combines the benefits of both materials.
Conclusion: An Investment in Reliability
Specifying a tulip contact is about more than just its dimensions and base material. The surface finish is an integral part of its design and a critical factor in determining the long-term health of an electrical system. It is a direct investment in:
-
Operational Efficiency: By minimizing energy losses.
-
Predictable Performance: By ensuring stable electrical characteristics.
-
Long-Term Reliability: By protecting against environmental and mechanical degradation.
For engineers, procurement specialists, and system designers, understanding the role of surface finishing is essential. By choosing the right finish for the specific application environment—be it a humid coastal area, an industrial setting with corrosive gases, or a high-vibration machinery—you are not just buying a component; you are ensuring the safety, efficiency, and durability of the entire electrical assembly. In the critical junction where connection happens, the surface finish is what makes that connection truly reliable.
